ProfiHub Ground Clip GC-01 (25 pcs)
$US 182.28
Bag with 25 pieces of Ground Clips. To be used with B1, T1 or any other screw terminal connection which requires improved stress relief.

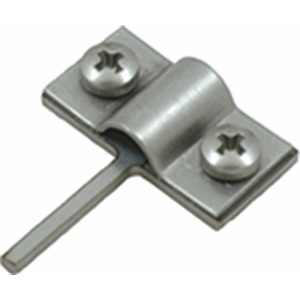

GC-01 – Bus cable grounding clip
The GC-01 ground clip prevents pig tales in the grounding at devices that have screw terminals for the connection of the bus cable. It’s suitable for every standard PROFIBUS DP and PA cable (8 – 10 mm).
About the GC-01 – Bus cable grounding clip
The clip has to be firmly mounted in the ground terminal at the device to get the best EMC performance and additionally provide a strain relief. To be used with B1 Repeater, Terminator T1 or any other screw terminal connection which requires improved stress relief.
Technical specifications
General
- Cable diameter: Max. 6 mm (jacket removed)
- Terminal width: 1.8 mm
- Terminal length: 17 mm
- Total length: 28 mm
- Total width: 23 mm
- Material: Stainless steel
- Weight: 6 g
- Resistance: <10 mOhm
