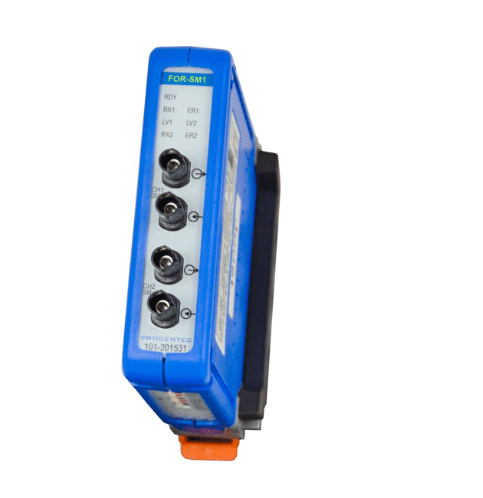

ComBricks 2 Channel Fiber Optic Module- Ring Redundant- Multi Mode
$ 2,026.00
ComBricks 2 Channel PROFIBUS fiber optic module Ring Redundant
– Suitable for up to 5 km multimode cable.
– Long cable distances
– Galvanic isolation between devices and segments
– Suitable for point-to-point, star, bus, & ring topologies.
– EKS, Other PROCENTEC RIng Products Compatable
Delivered including backplane socket
PROFIBUS Multi-Mode Fiber Optic Ring
The ComBricks Fiber Optic Ring module for multi-mode technology (ComBricks FO Ring MM) ensures reliable optical data transmission in PROFIBUS networks. This multifunctional module is specifically designed by PROCENTEC to create optical redundant ring topologies with multimode fiber optics. It allows long cable distances up to 5 km and a galvanic isolation between devices and segments. The ComBricks FO Ring MM module is especially suitable for applications in heavy EMC environments such as oil & gas, waste treatment and cranes.
Introduction
The ComBricks FO Ring MM module contains diagnostic LEDs which indicates the detection of a low level on the optics. Just like any other communication module, the channels are connect directly to the ProfiTrace OE core in the Head Station. An advanced email functionality will alert you when faults like low level or broken ring arise. Because busmonitor data is directly available in the web server, it allows technicians to optimal maintain a PROFIBUS installation.
ComBricks FO Ring MM can be placed side by side with repeater modules allowing spur line diagnostics. It can also easily be used as a fully dedicated fiber optic modules mixed with copper segments. The advanced 12 Mbps core of the fiber optic module can be cascaded unlimited with other fiber modules.
Technical specifications
Product features
- Fiber optic characteristics
- 2 Fiber channels (multi-mode)
- Max. 5 km cable length
- Ring, point-to-point and line topologies
- 4 ST/BFOC connectors
- Multi-mode cable G62.5 / 125 (OM1) – 1310 nm
- Ring redundancy (switchable)
- No limit in cascading
- Optical budget: 13dB
- Optical loss: 2dB per km
- Head station firmware: 1.288 and higher
ComBricks characteristics
- Low level display
- Event emails
Protocol
- Transparent for all PROFIBUS protocols
- 9.6 kbps – 12 Mbps (auto detection)
- No address required
- Transmission speed detection: Auto detect (< 10 s detection and 50 s time out)
- Delay time (per ring module): 2 TBit at 9.6 kbps .. 19.2 kbps; 3 TBit at 187.5 kbps .. 45.45 kbps; 4 TBit at 500kbps; 10 TBit at 1.5 Mbps; 20 TBit at 3 Mbps; 40 TBit at 6 Mbps; 80 TBit at 12 Mbps
Backplane
- 4 Networks selectable with switches
- 10 Modules (positioned in the first 10 slots)
- Power supply: provided through the backplane
- Compatible backplane units: 101-200011, 101-200012, 101-200023, 101-200024, 101-200027
