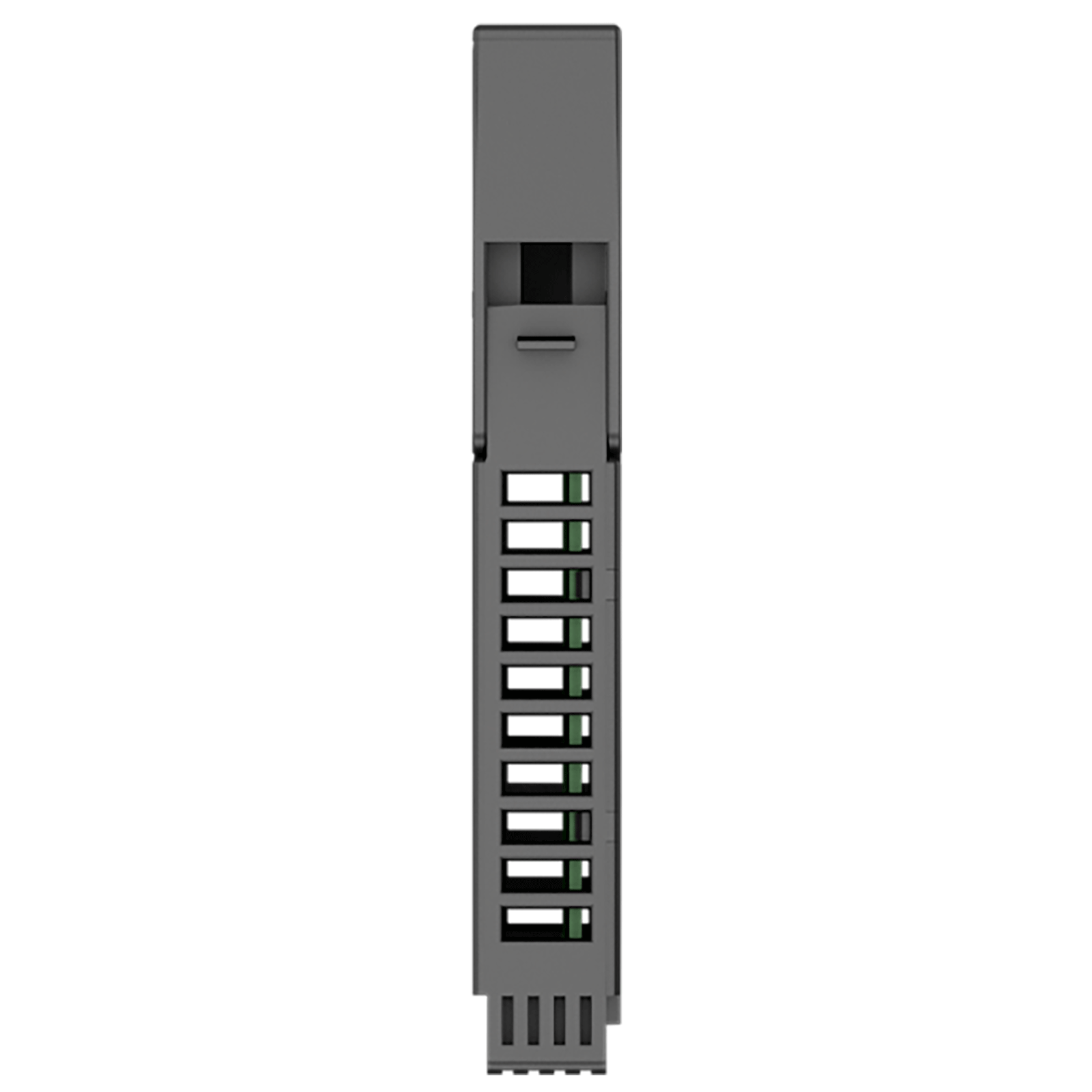

OPTO 22 GRV-IRTD-8 Open Box

Part of the groov EPIC^® system, the GRV-IRTD-8 analog input module provides 8 input channels, each individually software configurable.

This module is commonly used for 3-wire RTD temperature inputs but is also suited to high-resolution resistance measurements. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

Need help verifying fit with your application? Contact us before ordering – we are happy to make sure this product meets your specs.

Extended Order Code: GRV-IRTD-8
Device type: Analog input, temperature (RTD) or resistor, 8 channels
Manufacturer: OPTO 22

groov Thermistor Resistor Input Modules Data Sheet

Specifications GRV-IRTD-8:

Number of Channels: 8
Channel-to-Channel Isolation:
Analog Totalizing: Yes
Average Filter Weight: Yes
Fast ADC Mode:
Minimum/Maximum Values: Yes
Offset and Gain: Yes
Quality Indication: Yes
Scaling: Yes
Simple Moving Average (SMA): Yes

FAQ

What condition is this product: Used. Open Box – verified in working condition
Is there a warranty: 90 days. Upon return will replace if stock available or refund.
What about delivery: FOB Calgary, Canada
What is the Country of Origin (COO): US
Do you know the HS Code: 8538.9000
Use Case: Analog input, temperature (RTD) or resistor, 8 channels
Duties, Taxes, Tariffs: customer is responsible for any import duties, taxes and/or tariffs.

You can individually configure each of the module’s 8 channels for a fixed range in ohms or choose from two methods of auto-ranging:

• Full Auto-range—The module scrolls up and down the entire set of ranges and dynamically chooses the appropriate range for best resolution. Note that this channel type can result in higher latency when ranging up; the data returned is resistance in ohms.
• Auto-range Down—The module scrolls down and up within the specified range limit. If the value goes above the specified range, the module issues an out-of-range value (16-bit). These channel types allow auto-ranging within the selected range but limit the data latency when ranging up. The data returned is resistance in ohms.

The GRV-IRTD-8 module does not offer channel-to-channel isolation, so make sure you use isolated RTD probes.

The GRV-IRTD-8 module mounts on a groov EPIC^® chassis with a GRV-EPIC-PR1  processor and assorted discrete, analog, and serial groov I/O modules.

All groov I/O modules are UL/cUL listed and compliant with the ATEX, Low Voltage, and EMC CE and UKCA directives. Each module is factory tested twice before shipment and most modules are guaranteed for life.
