Thorsis isNet DP 1-Channel Gateway

Secure Remote Access to PROFIBUS DP Networks

The isNet DP module extends the isNet Lite (head end) to work as a PROFIBUS DP Ethernet Gateway. The isNet DP modules are available as one and two channel version. The main module can be enhanced with a maximum of 5 PROFIBUS modules, so up to ten PROFIBUS segments can be accessed from the main module. The PROFIBUS channels are galvanically isolated, at the 2 channel version each channel is isolated separately.

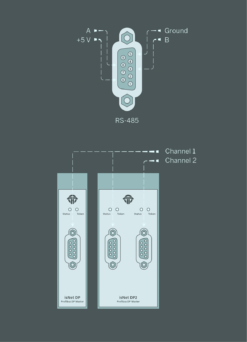

Access to the PROFIBUS network is provided by a SubD9 connector (female).The protocols DP/V0 and DP/V1 are supported.

The modules are operated via the isPro Com mDTM. The DTM is compliant to the FDT 1.2.1 specification and integrates the gateway into every FDT-frame application.
