Compact DP Repeater B1
$ 767.37
1-channel (2 segment) repeater for DP networks, IP 20 reated. With redundant power supply, screw terminals for bus connection and DB9 connector for maintenance purposes.

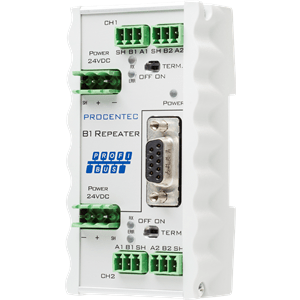

PROFIBUS DP Repeater B1
The PROFIBUS DP B1 Repeater tackles the technical limitations of existing PROFIBUS repeaters. It does not have the frustrating short-circuit bug and the data is constantly monitored for glitches which are digitally filtered out. It has the following unique features:
- Guarantees conveniently arranged networks
- Compact design
- Cost saving
About the compact PROFIBUS repeater
The advanced 12 Mbps core of the B1 is comparable to the ProfiHub: it can be cascaded without limitations and has increased RS 485 strength. Furthermore, every channel has on-board switchable termination and is able to drive 31 devices. The removable screw terminals of the PROFIBUS interface are pinned-out in a way that reversed mounting of the repeater does not impact existing wiring. A DB9 connector is provided to connect diagnostic tools. The redundant power supply increases reliability of the application.
This compact and easy to use network component complies with the requirements of the demanding modern industry to increase the PROFIBUS cable length and amount of connected devices.
More benefits
- Extendable installations
- Recovery of corrupted data bits
Features
- Suitable for all DP cables
- Low power consumption
- Redundant power supply
- No address required
- No limit in cascading
- Short circuit protection on each segment
- Integrated termination (switches)
- Removable screw terminals and a DB9 connector
- Monitoring port on outgoing segment
- IP20
- UL listed
- CE declared
- FCC verified
UL-listed
This product is UL-listed.?Read more about UL-certification.
Technical specifications
General
- Dimensions (LxWxH): 106 x 55 x 37 mm (excluding plug-able connectors)
- Weight: 126 grams (excluding plug-able connectors)
- 2 galvanicly isolated channels
Electrical
- Operating voltage: 24 VDC
- Absolute max. rated voltage: 19 … 28 VDC
- Nominal power use: 1 W
- Input current(24VDC): 43 mA
Protocol
- Transparent for all PROFIBUS DP protocols
- Suitable for PROFIsafe and MPI
- 9.6 kbps … 12 Mbps (automatic detection)
- No address required
Others
- DB9 monitoring port
